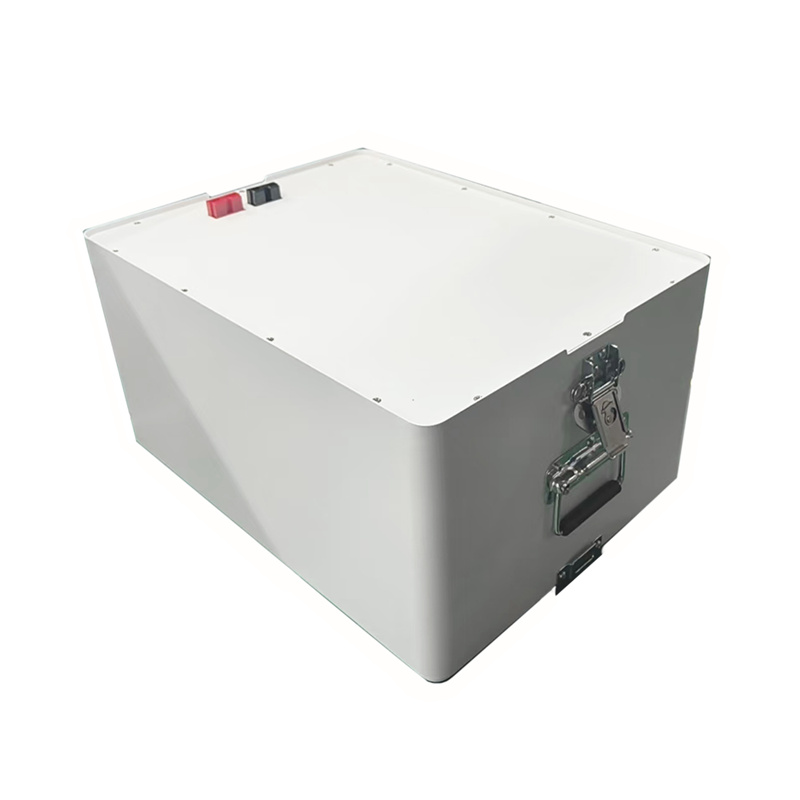

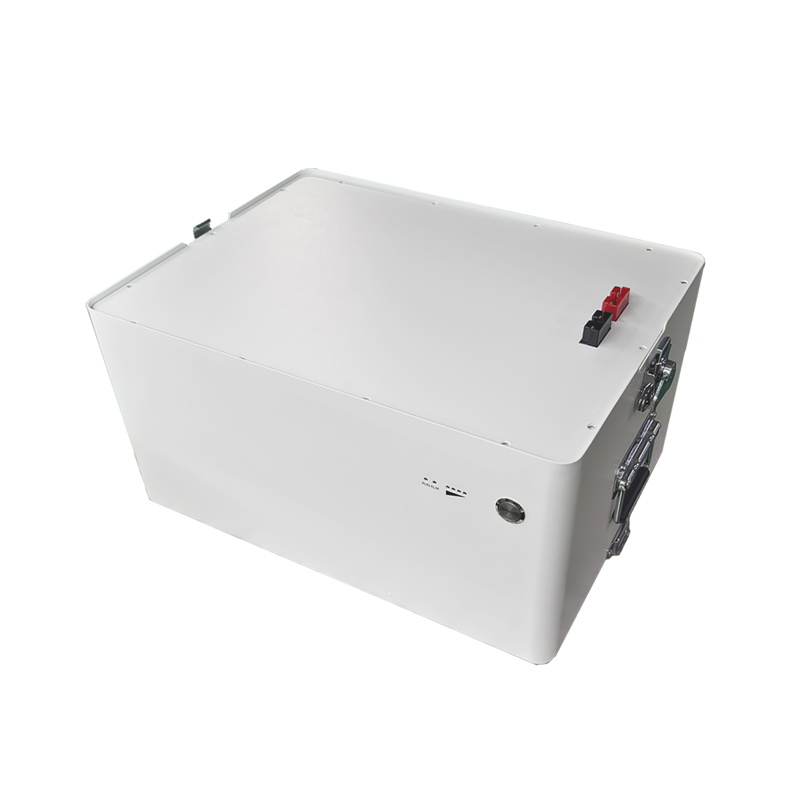

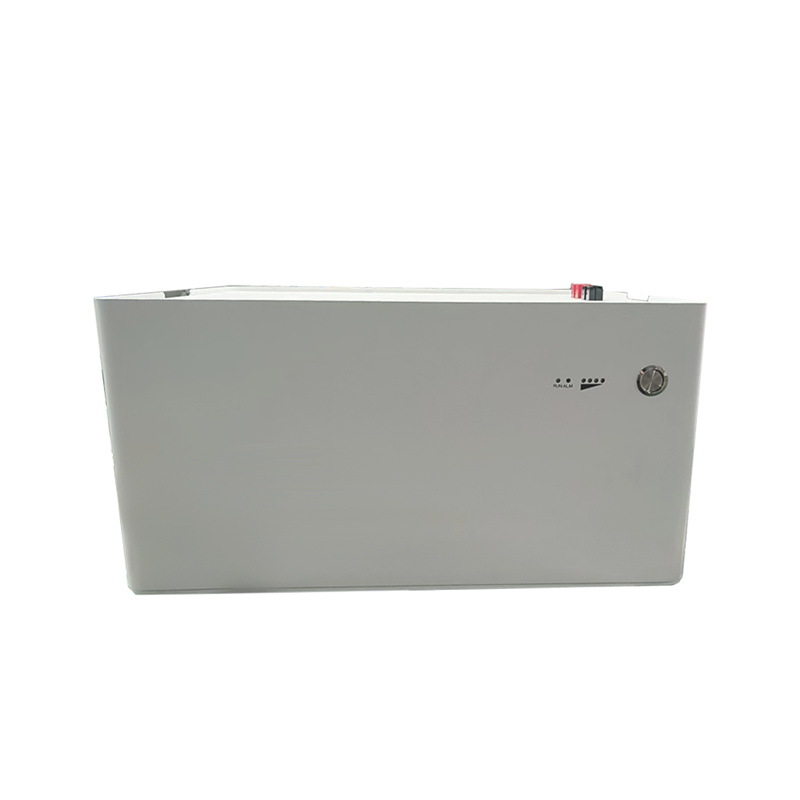

Household 5kWh Lock - buckled stacked lithium- ion battery
Nominal Voltage: 51.2VRated energy: 5/10/15/20/25/30kWhType: Lock-buckledCell: Prismatic LiFePO4 cells Max con. charge power: 5kWWarranty: 5 yearsCycle life: ≥2000 timesKey Feature Of PTP 51.2V Lifepo...
Print this Page
Bookmark this
Inquiry product
E-mail UsNominal Voltage: 51.2V
Rated energy: 5/10/15/20/25/30kWh
Type: Lock-buckled
Cell: Prismatic LiFePO4 cells
Max con. charge power: 5kW
Warranty: 5 years
Cycle life: ≥2000 times
Key Feature Of PTP 51.2V Lifepo4 Battery For Energy Storage Systems.
High-quality battery cells with 2000+ times cycle life @ 80% DOD.
Advanced Protection Board: It has an advanced protection board that monitors and protects against overcharging, over-discharging, short circuits, and over current.,

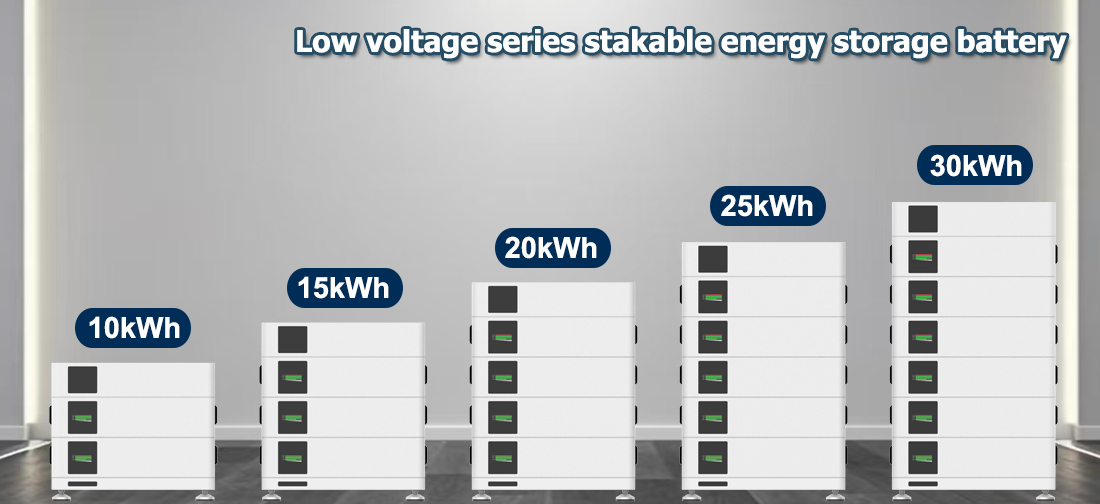

Modular and Stackable Design, Max of 10 modules in parallel.
Space-saving and Easy Installation
5 years warranty brings you peace in mind.

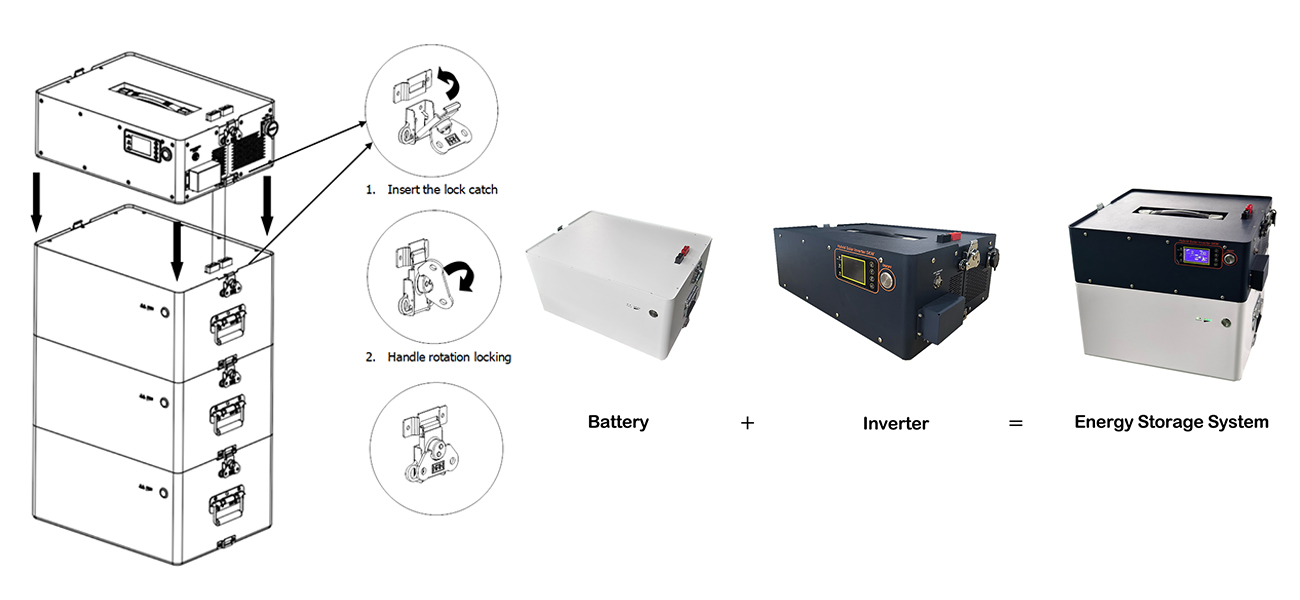

Latching design, with a more stable structure.
Technical Datasheet
Model | FHBL-05KLV-03 |
Capacity | 5 kWh |
Rated Voltage | 51.2 V |
Max Con. Charging Power | 5kW |
Max Con. Discharge Current | 100A |
Size | 513.6*351.4*249mm |
Weight | 45kg |
Operating Temperature | 0 ~ 55°C |
Battery Cell Type | lithium iron phosphate LiFePo4 (cobalt-free) |
Protection Rating | IP40 |
Round-trip Effeciency | ≥ 95% |
Scalability | Max of 10 modules in parallel (total of 50 kWh) |
Cycle performance | > 80% remainance after 2000 cycles |
RoHs | yes |
Compatible Inverter Brands | CSIT - FHI-XXK1P-EU01 Hybrid Solar Inverters; |
How To Connect With The Inverter?

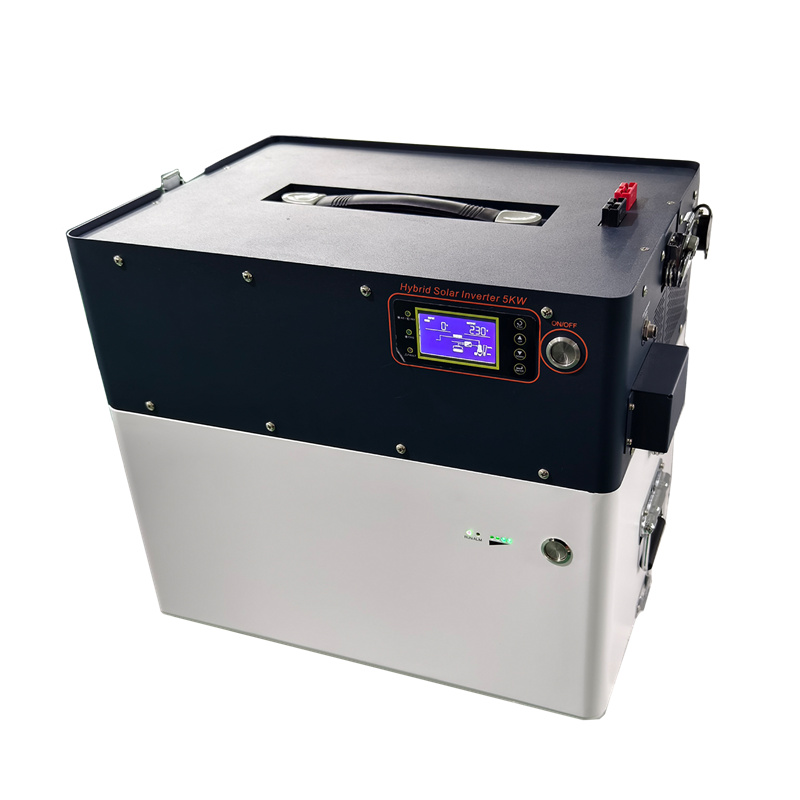

This battery pack is connected to a hybrid PV inverter and can use PV power, grid power and battery power to connect with loading requirement electrical part.
Please follow below steps to implement battery connection:

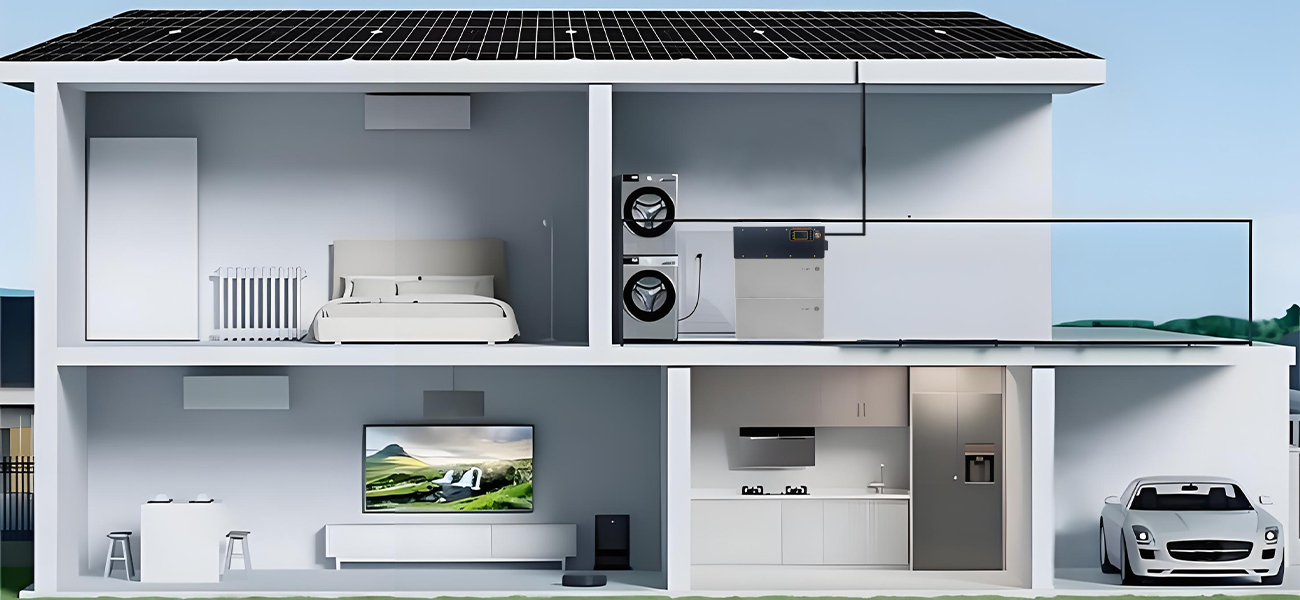

ApplicationThe 48V and 51.2V lithium-ion batteries are primarily applied in residential ESS (Energy Storage Systems) to serve as backup power sources for home appliances like fridges, TVs, air conditioners, and fans. The employment of a home energy storage system enables the improvement of energy efficiency, the reduction of power outage risks, and the optimization of electricity costs.
