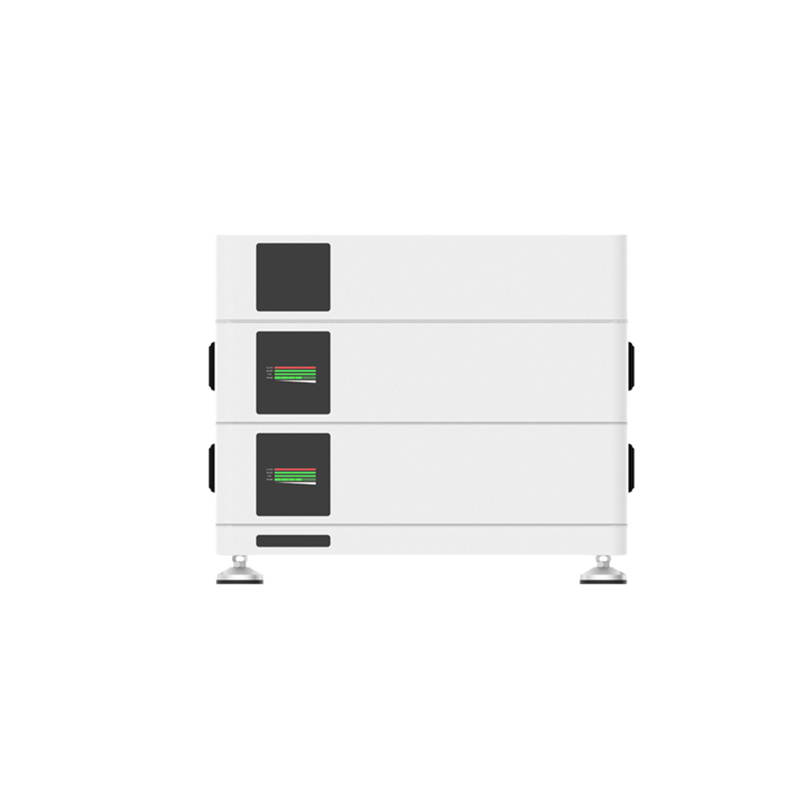

51.2V 5kWh to 30kWh lifepo4 battery for residential energy storage
● Nominal Voltage: 51.2V● Rated energy: 10/15/20/25/30kWh● Type: Stackable● Cell: Prismatic LiFePO4 cells● Max con. charge power: 10kW● Warranty: 10 years● Cycle life: ≥6000 times● Protection rating: ...
Print this Page
Bookmark this
Inquiry product
E-mail Us● Nominal Voltage: 51.2V
● Rated energy: 10/15/20/25/30kWh
● Type: Stackable
● Cell: Prismatic LiFePO4 cells
● Max con. charge power: 10kW
● Cycle life: ≥6000 times
● Protection rating: IP65

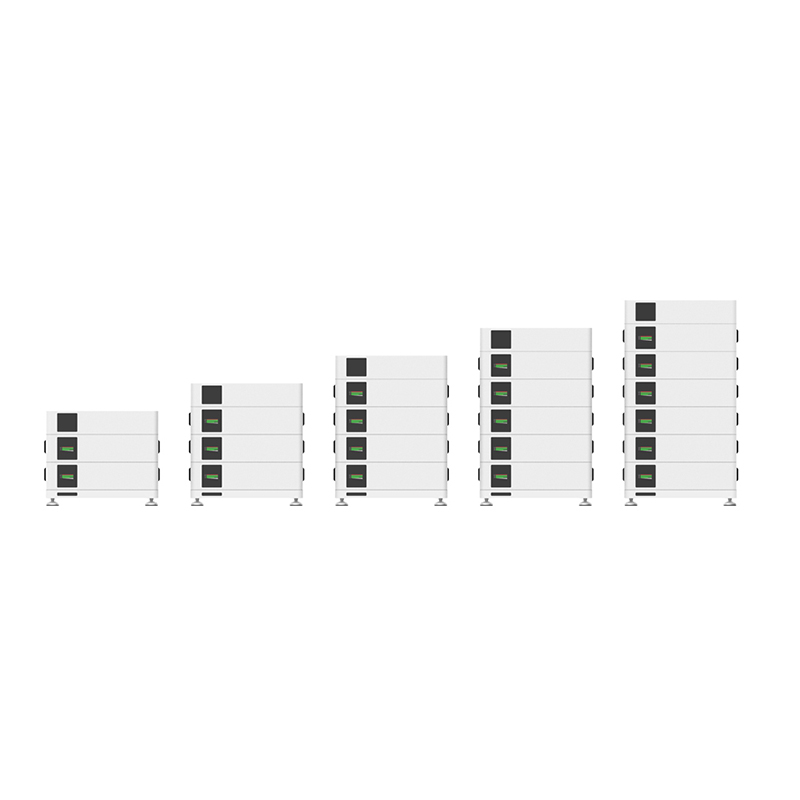

PTPBATTERY lifepo4 battery for residential energy storage is stackable , each module capacity is 100Ah 5kWh, we offer designs with various energy from 5kWh to 30kWh for your choice, its compatible with the mainstream inverter brands in the market, with IP65 waterproof housing , 6000+ long cycle life and the warranty time can be up to 10 years
Main Feature Of CSiT 51.2V Lifepo4 Battery For Energy Storage Systems.
● Grade A lifepo4 lithium cells with 6000+ times cycle life @ 80% DOD.
● Smart BMS, support CAN and RS485 communication protocol, compatible with most mainstream inverter brands,
● Stackable design, Max of 15 modules in parallel.
● Easy to install and save space.
● 10 years warranty brings you peace in mind.
● IP65 waterproof，can be installed outdoor.
Technical Datasheet

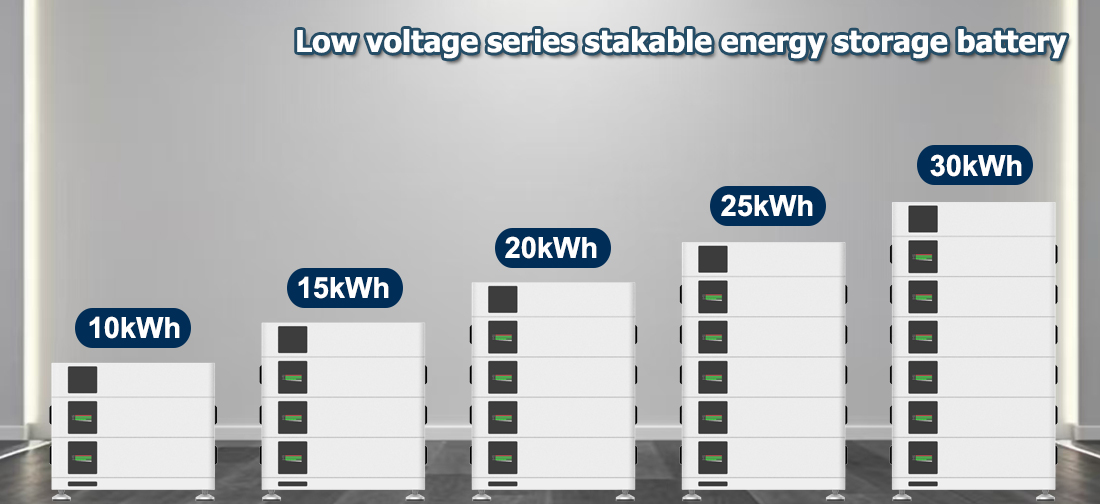

Model | FHB-10KLV-01 | FHB-15KLV-01 | FHB-20KLV-01 | FHB-25KLV-01 | FHB-30KLV-01 |
Module Quantity | 2 | 3 | 4 | 5 | 6 |
Capacity | 10 kWh | 15 kWh | 20 kWh | 25 kWh | 30 kWh |
Rated Voltage | 51.2 V | ||||
Max Con. Charging Power | 10kW | 10kW | 10kW | 10kW | 10kW |
Max Con. Discharge Current | 97A | 195.3A | |||
Size (with platform and BCU) | 700*370*540mm | 700*370*700mm | 700*370*860mm | 700*370*1,020mm | 700*370*1,180mm |
Weight (with platform and BCU) | 132kg | 183.1kg | 234.2kg | 285.3kg | 336.4kg |
Operating Temperature | -10 ~ 50°C | ||||
Battery Cell Type | lithium iron phosphate LiFePo4 (cobalt-free) | ||||
Protection Rating | IP65 | ||||
Round-trip Effeciency | ≥ 95% | ||||
Scalability | Max of 15 modules in parallel (total of 75 kWh) | ||||
Cycle performance | > 80% remainance after 6,000 cycles | ||||
Applications | on grid / on grid + backup / off grid | ||||
Communication | CAN / RS485 | ||||
CE | IEC 62619: 2017, UN38.3 | ||||
EMC | EN61000-6-1, EN61000-6-3 | ||||
RoHs | yes | ||||
Compatible Inverter Brands | CSIT - FHI-XXK1P-EU01 Hybrid Solar Inverters; | ||||

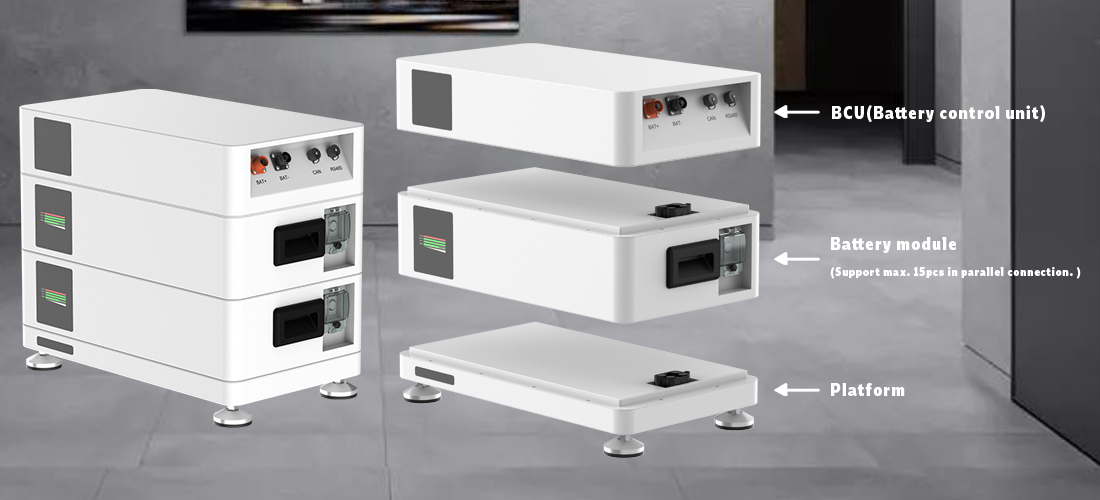

Key ComponentsPTPBATTERY stakcable residential energy storage battery key components including:
● BCU: Battery control unit is responsible for monitoring and managing parameters such as battery level, voltage, current, and temperature to prevent overcharging, overdischarging, and overheating of the battery. It can also communicate with inverters and electrical equipment to coordinate the work.
● Battery module: Each module with the capacity of 5kWh, we have 5kWh to 30kWh for choice, and it support max 15 modules in parallel connection to enlarge the capacity to 75kWh.
● Platform: To support and protect the battery and improve security.

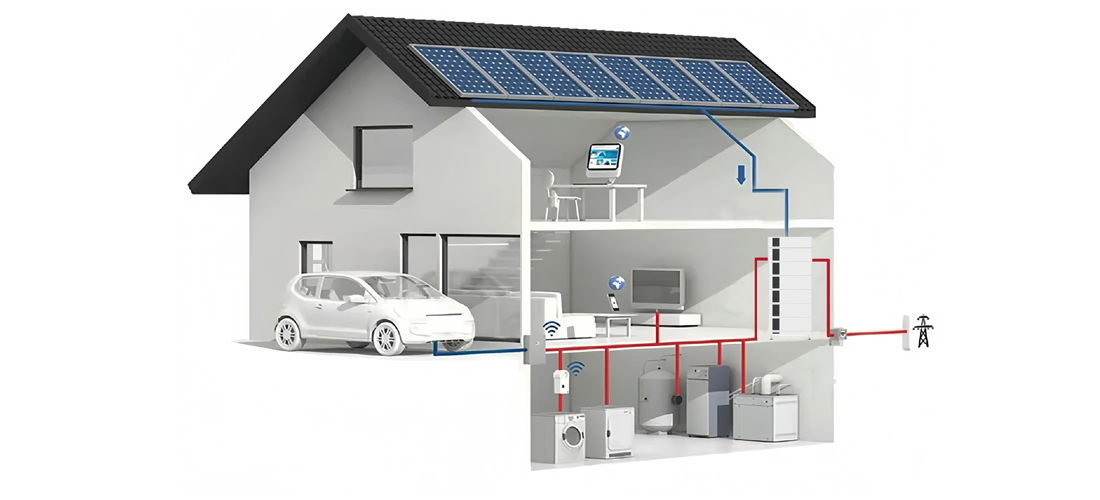

ApplicationThe 48V 51.2V lithium ion battery can be mainly used for residential ESS(energy storage system) to provide back up power for home appliances including refrigerators, televisions, air conditioners, fans, etc. Using household energy storage systems can improve energy efficiency, address power outage risks, and optimize electricity costs.

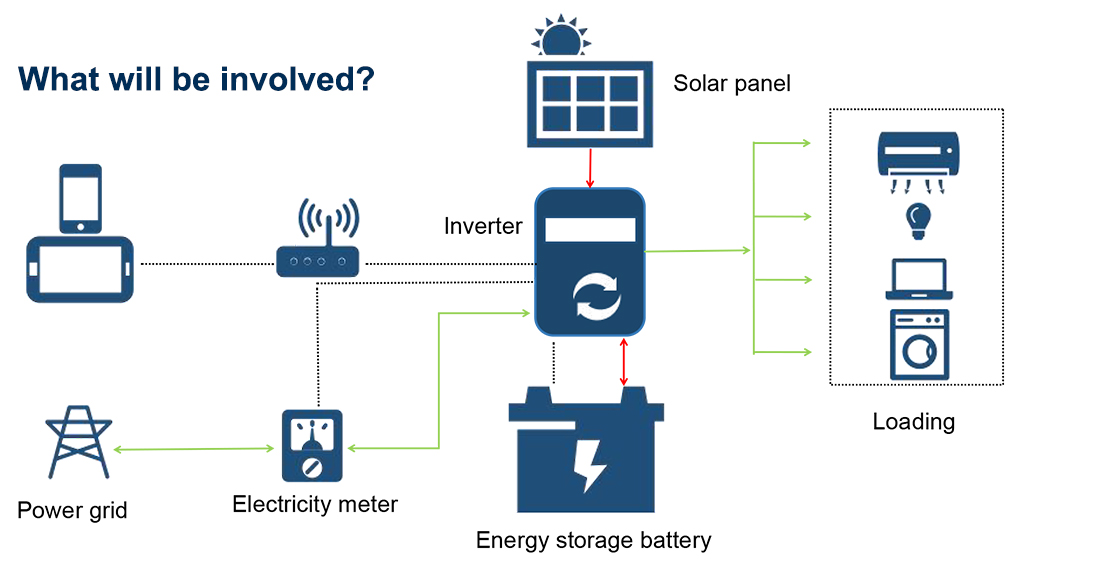

What’s Included In A Residential Solar System?
● Energy storage battery pack
● Inverter
● Solar panel
● Electric meter
● Load: household electric appliances
● Grid
What’s Included In A Residential Solar System?
