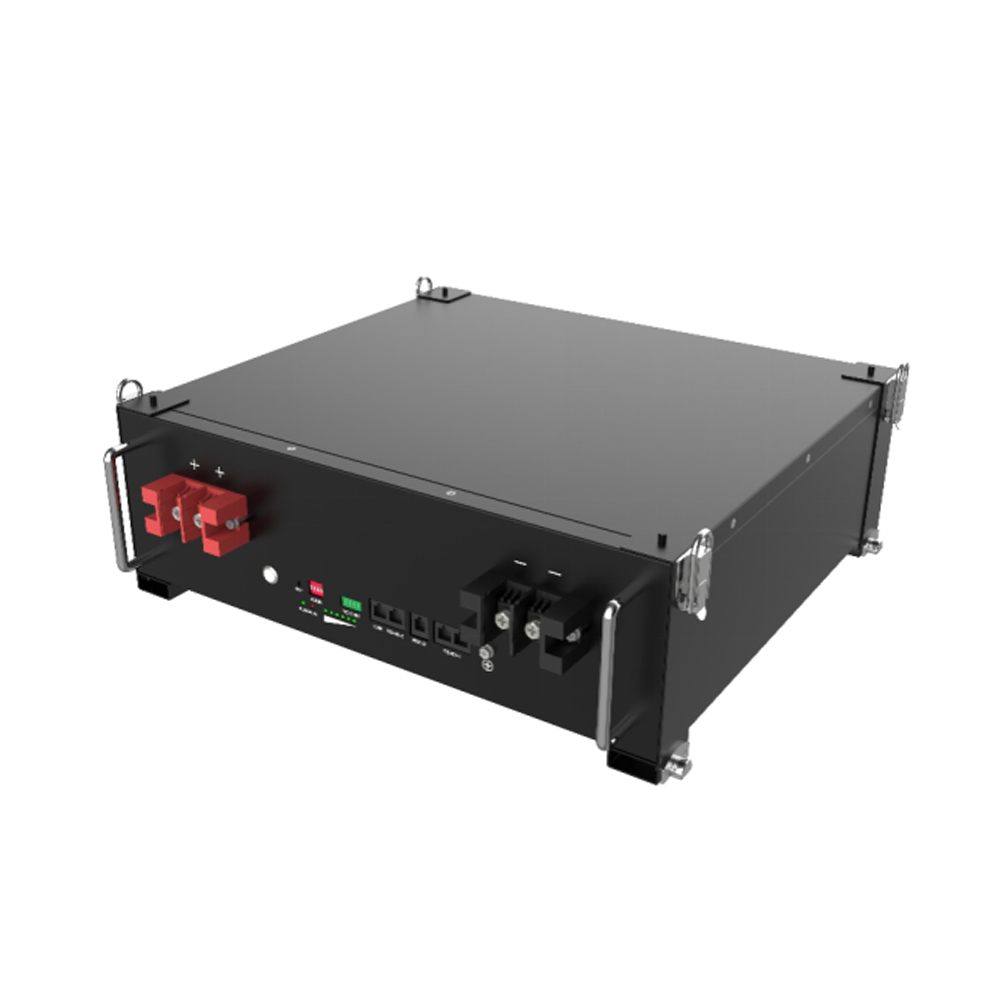

Rack mounted 5kWh to 30kWh solar energy li ion battery storage

Nominal Voltage: 51.2V

Rated energy: 5/10/15/20/25/30Wh

Type: Rack mounted

Cell: Prismatic LiFePO4 cells

Communication Protocol: CAN/RS485

Cycle life: ≥6000 times

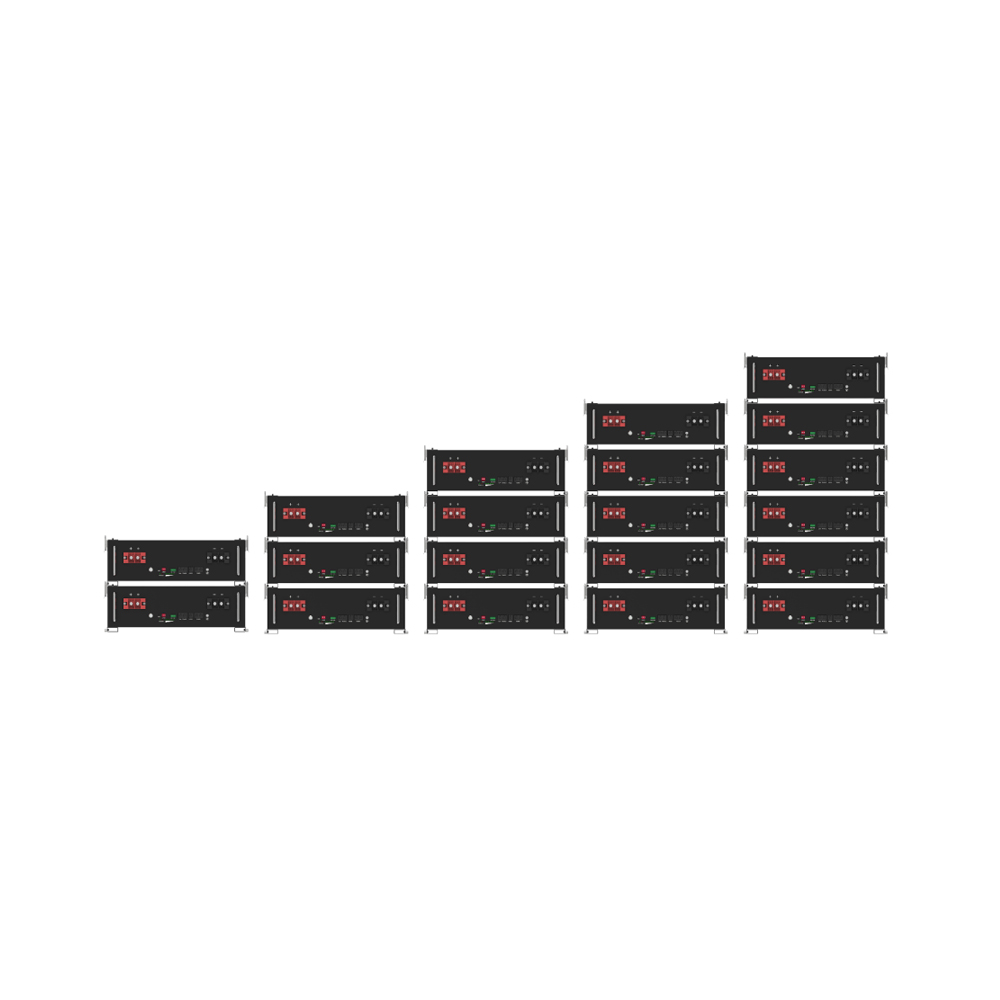

PTP Rack mounted 5kWh to 30kWh solar energy li ion battery storage is stackable , the capacity of each unit is 5kWh, you can enlarge the capacity by connecting each module with cables, max 15pcs can be connected in parallel. It’s compatible with most famous brands of inverter in the market, with long cycle life and cost saving.

Main Feature Of CSiT Rack Mounted Solar Energy Battery Storage

Long cycle life: use grade A cells such as CATL, EVE, GOTION, cycle life is 4000-6000 times.

Compatible with most famous brands of inverter such as PACE / PYLON / Growatt / Voltronic / Schneider/ Luxpowertek / WOW / VISION , etc.

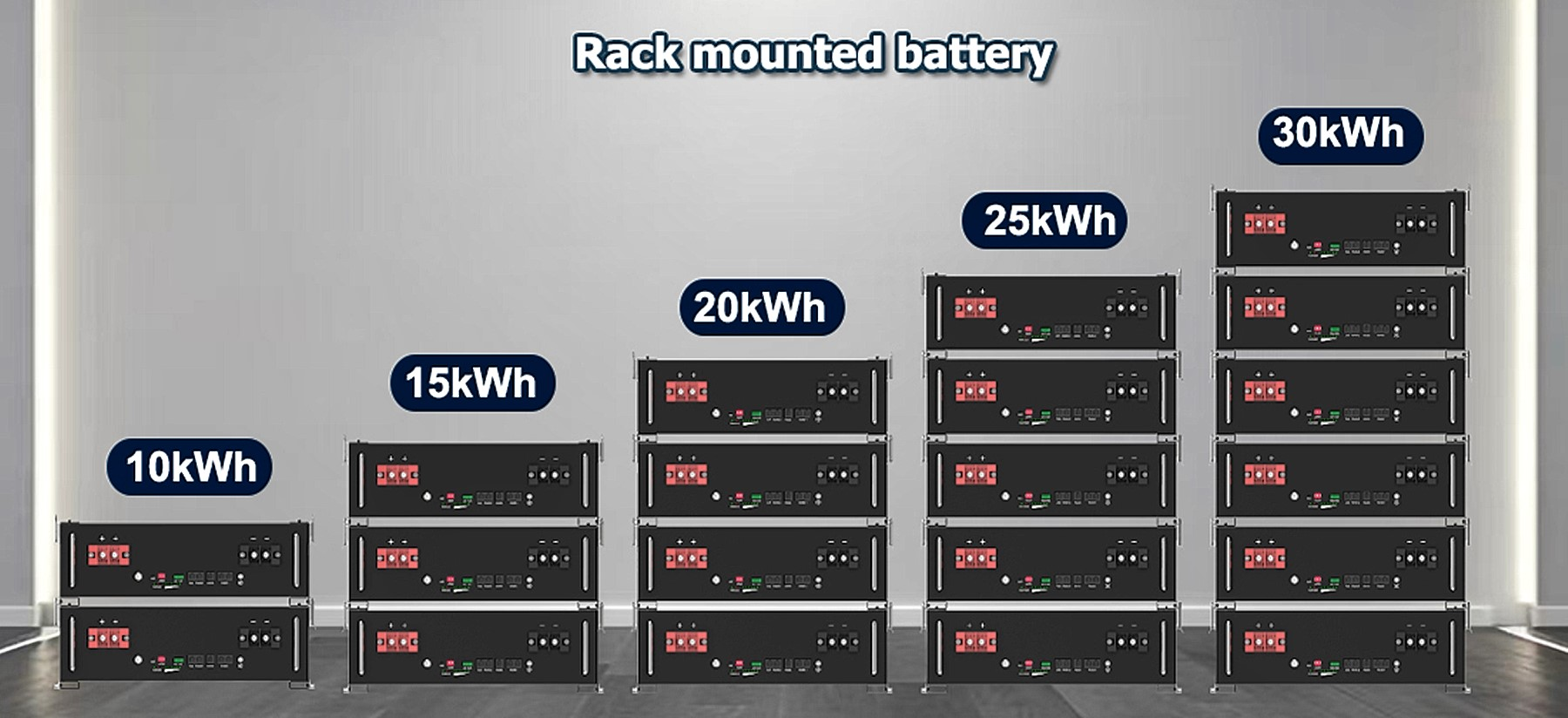

5kWh of each battery module, max capacity can be 75kWh.

Economical solution , save your cost.

6~10 years warranty time.

Technical Datasheet

Model	FHBL-05KLV-02	FHBL-10KLV-02	FHBL-15KLV-02	FHBL-20KLV-02	FHBL-25KLV-02	FHBL-30KLV-02
Module Quantity	1	2	3	4	5	6
Capacity	5kWh	10kWh	15kWh	20kWh	25kWh	30kWh
Rated Voltage		51.2V
Max.Con.Charging Power	5kW	10kW	10kW	10kW	10kW	10kW
Max.Con.Discharge Current	97A		195.3A
Size	464*439*155（mm）	464*439*310（mm）	464*439*465（mm）	464*439*620（mm）	464*439*775（mm）	464*439*930（mm）
Weight	46kg	92kg	138kg	184kg	230kg	276kg
Operating Temperature	-10℃~50℃
Battery Cell Type	lithium-ion phosphate LiFePO4 (cobalt-free)
Protection Rating	IP21
Round-trip Effeciency	≥95%
Scalability	Max of 15 modules in parallel (total of 75 kWh)
Cycle performance	＞ 80% remainance after 6,000 cycles
Applications	on grid / on gird + backup / off grid
Coummunication	CAN / RS485
CE	IEC 62619:2017, UN38.3
EMC	EN61000-6-1, EN61000-6-3
RoHs	yes
Compatible Inverter Brands	PTP-FHI-XXXK1P-EU01 Hybrid Solar Inverters; Support other brands : PACE / PYLON / Growalt / Voltronic / Schneider / Luxpowertek / WOW / VISION / GoodWe / SMA / Sorotec / STUDER / SofarSolar / GINLONG / MUST / Victron / SRNE

Product Details

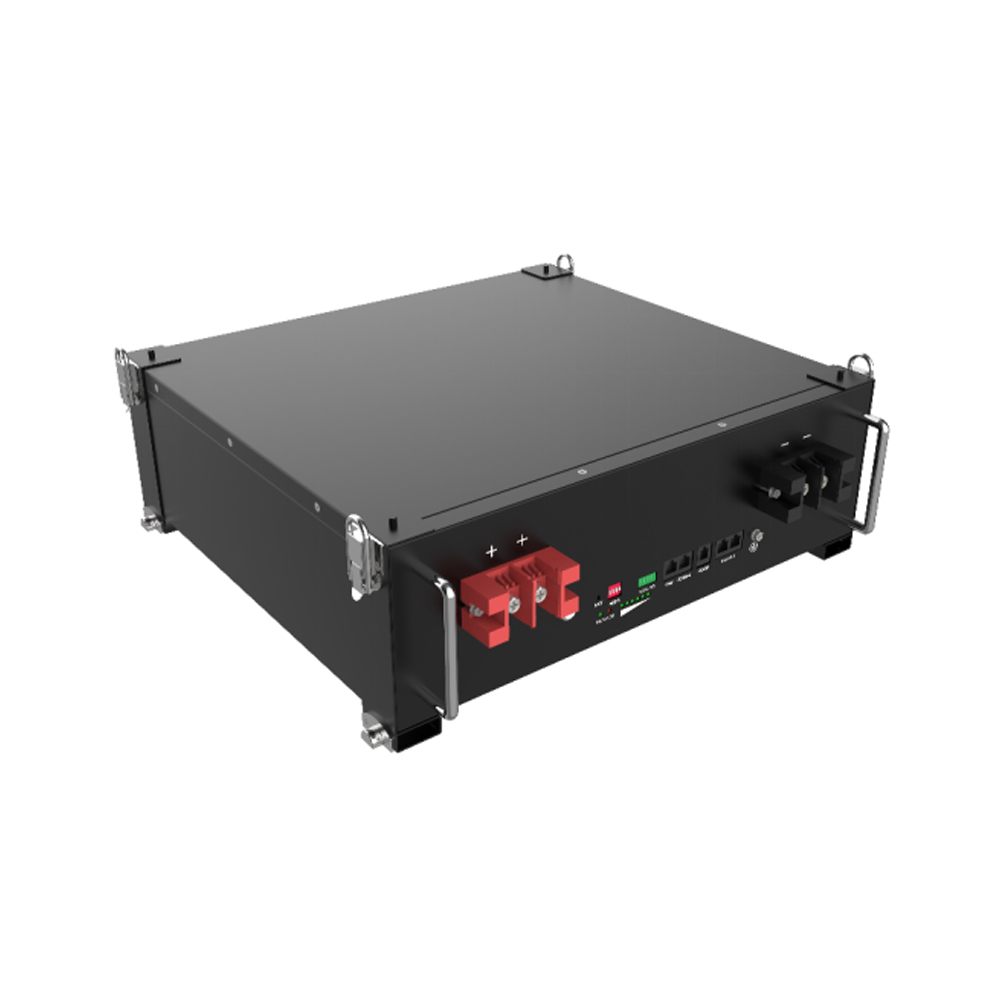

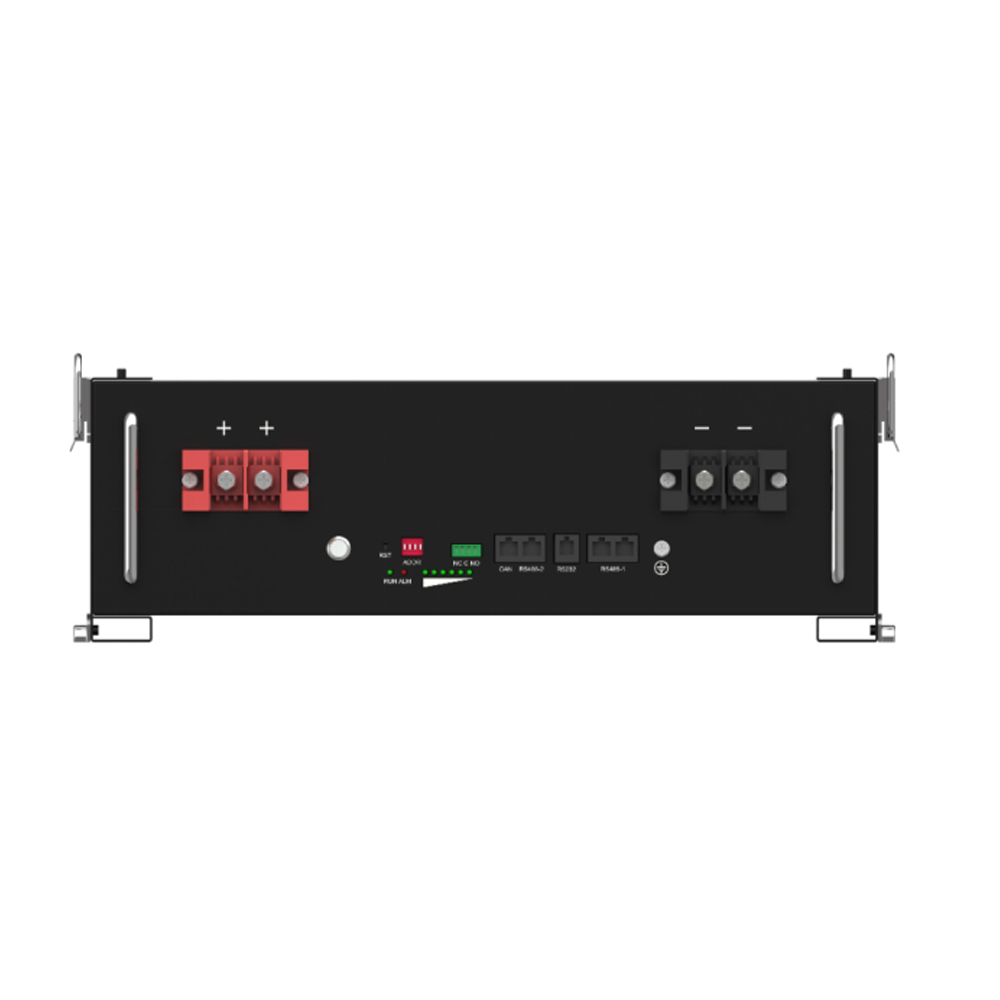

PTP rack mounted 51.2V energy storage battery details of each module is as below, it is an economical solution for residential energy storage, cost is lower than wall mounted and stackable design.

Cabinet and wheels can be added according to customer’s request, OEM/ODM orders are welcome.

ApplicationThe lifepo4 rack mount energy storage battery can be used on residential ESS(energy storage system) , communication based station and UPS system/data center backup.
What’s Included In A Residential Solar System?

LiFePO4 Battery pack

Inverter

PV panel

Electric meter

Load: home electric appliances

Grid
